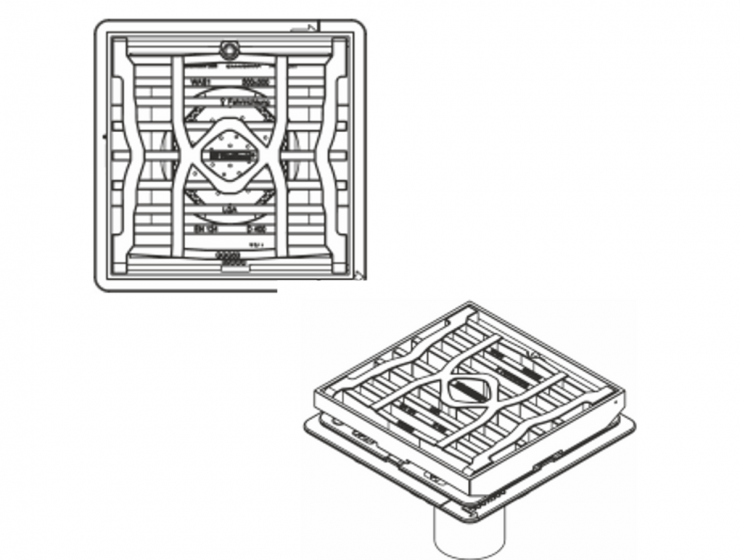

Bridge Drainage 500/500 Flat Gully

• Cast iron bridge gully
• Compliant with standard drawing WAS 1
• Class D 400 DIN EN 124 DIN 1229
• Upper part steplessly adjustable in height, inclination, sideways, as well as rotatable
• Grate cross-section 500x500
• Slot width approx. 30 mm / inlet cross section 1110 cm²/ with damping support / with hinge and friction lock
• Hot galvanised sludge bucket, capacity 2.8 liters
• Clamping flange for sealing membrane clamping and as support for gully top /with seepage tunnel
• Bottom part with gully socket DN 150 / with adhesive flange for sealing membrane / with screw-on option for mounting support
